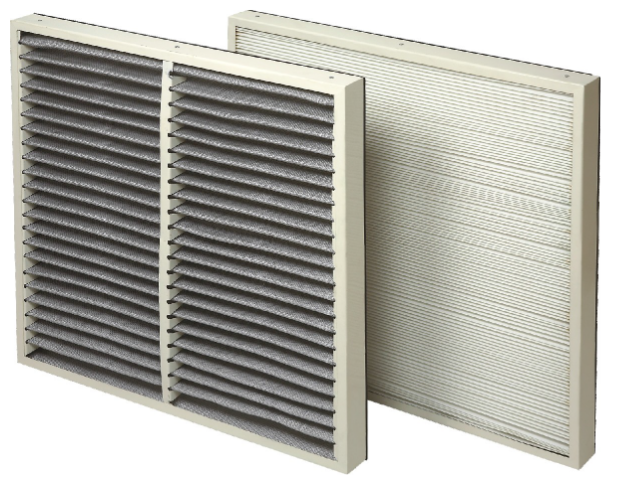

FINE Filter

Panel filters are used in industries to retain particles ranging from 1 micron to 50 micron. These filters are basically air intake filters, which work with negative pressure of systems. These filters are further classified as.

Secondary filters are used for fine filtration for removal of particles in the range of 1 to 10 microns. Secondary filters are made from selective fiber media for better efficiency.
Download Brochure


Features & Benefits

Low pressure drop due to pleated configuration
Easy to install
No bypassing
Washable & reusable
High dirt holding capacity
Good mechanical strength
Retrofit to any standard make

Technical Specifications

Configuration Flange type & Box type
Sizes available 610mm x 610mm x 50mm / 100mm / 150mm / 300mm
545mm x 545mm x 50mm / 100mm / 150mm / 300mm
Customized sizes are available on request
Filtration Rating 1, 3, 5, 10 microns & more
Filtration efficiency 80 – 90%
Frame Material SS 304 / GI (Galvanized Steel) / Aluminium Powder coated /CRC powder coated or Zinc coated
Filter media HDPE Media / Synthetic Fiber Media / Spun bonded polyester media
