FEATURES & BENEFITS
| Ready-to-use disposable filter units |
| Sterilizable and regenerable |
| Highly durable Polypropylene construction |
| Excellent flow rate |
| Approved for Food Contact Use acc. to CFR Title 21 & 1935/2004/EC |

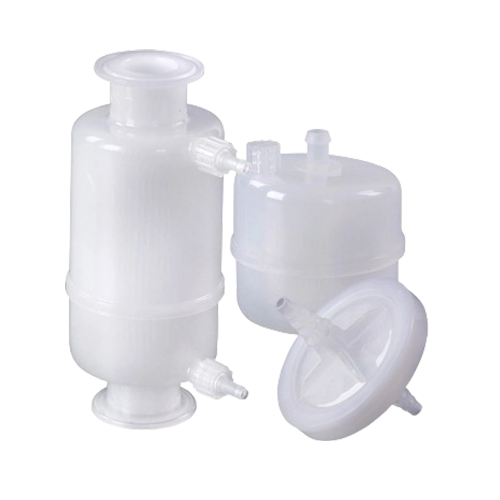

CAPSULE MEMBRANE FILTER

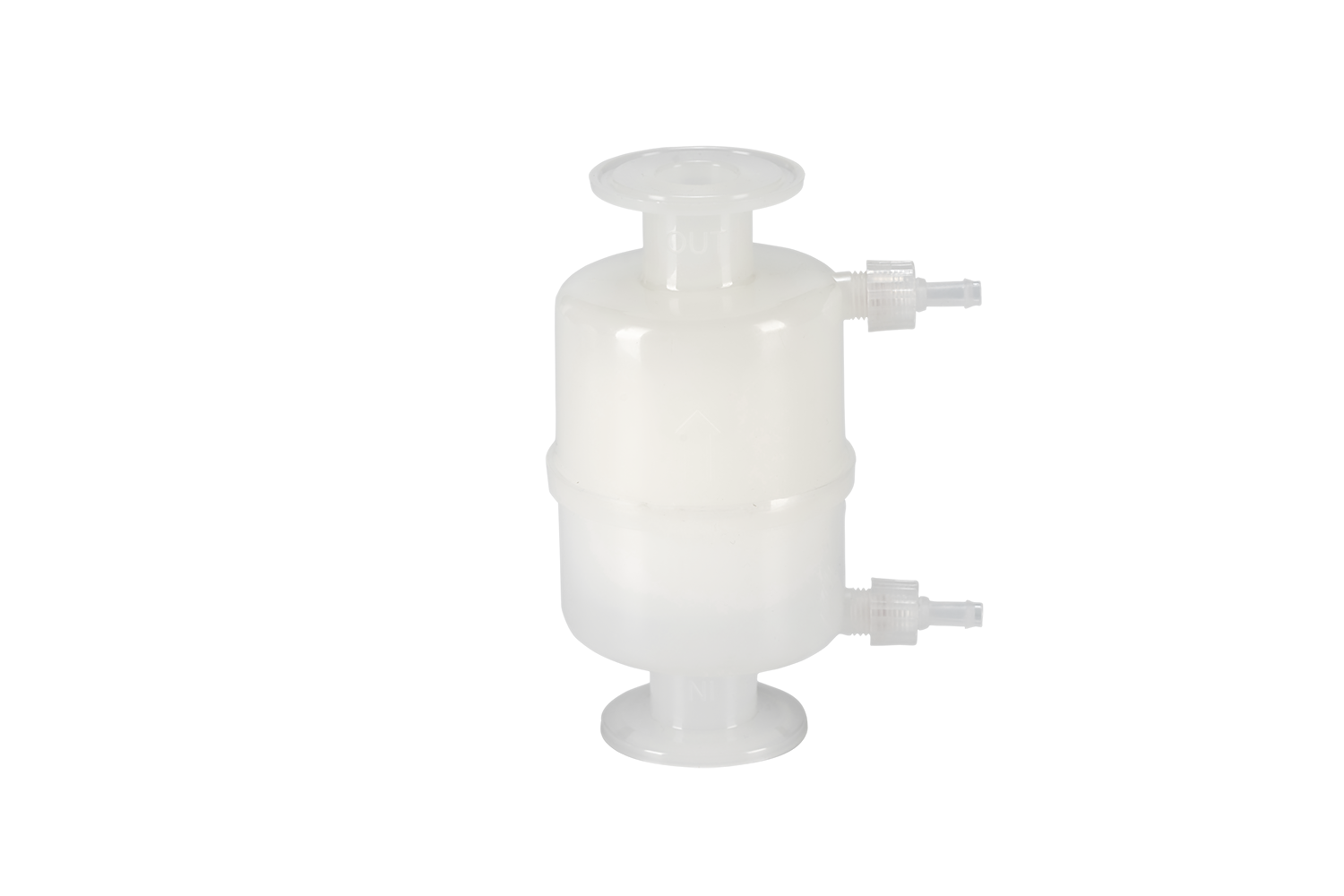

NG capsule filters are ready-to-use disposable filter assemblies. They are ideal for use in small batch and critical point-of-use applications, in liquid or gas service. NG capsule filters incorporate the full range of NG filtration media and removal ratings in compact, reliable assemblies. Each capsule filter assembly consists of a pleated filter element integrally sealed into a rugged polypropylene housing. A completely self-contained unit is formed by a state-of-the-art thermal bonding process, ensuring maximum filter integrity, security and performance. No glues, resins, adhesives, metals or other extraneous materials are used.
Download Brochure
- FEATURES & BENEFITS
- TECHNICAL SPECIFICATIONS
- CONSTRUCTION OF MATERIAL
- DIMENSION INFO
- USED IN INDUSTRIES
TECHNICAL SPECIFICATIONS
PRODUCT SPECIFICATIONS CAPSULE FILTER TYPE UFTD – PF – PES “W”
| Membrane Material | Polyethersulfone | |
| Absolute Retention Ratings | 0.2 um, 0.45 pm, 0.6 km | |
| Bacterial Retention (ASTM F838-83
Challenge, Brev. diminuta) |
UFTD – PF-PES “W”, 0,2 μm LRV > 7/cm2 | |
| Integrity Test: Minimum Bubble | Filter Grade | Minimum Bubble Point [bar / psi] |
| Point (Water) | 0.6 μm | 1.24 bar / 18 psi |
| 0.45 μm | 2.21 bar / 32 psi | |
| 0.2 μm | 3.03 bar / 44 ps | |
PRODUCT SPECIFICATIONS CAPSULE FILTER TYPE UFTD – PF – PT
| Membrane Material | Poly-Tetra-Fluor-Ethylene (PTFE) | |
| Absolute Retention Rating | 0.2 μm | |
| Bacterial Retention (ASTM F838-83
Challenge, Brev. diminuta) |
UFTD – PF – PT, 0.2 μm LRV > 7/cm2 | |
| Integrity Test: Minimum Bubble Point | Filter Grade | Minimum Bubble Point |
| (IPA/Water: 60 % / 40 %) | UFTD – PF – PT, 0.2 μm | [bar / psi] |
| > 1.0 bar / 14 psi | ||
PRODUCT SPECIFICATIONS CAPSULE FILTER TYPE UFTD – PP100
| Filter Material | Polypropylene | |||
| Absolute Retention Ratings | 0.8 μm, 1.2 μm, 2.4 μm, 5 μm, 7 μm, 10 μm | |||
| Particle Retention | Percent Removal | |||
| Retention Grade | 100% | 99% | 90% | |
| 0.8 | 0.80 | 0.72 | 0.50 | |
| 1.2 | 1.20 | 1.10 | 0.70 | |
| 2.4 | 2.40 | 2.30 | 2.00 | |
| 5 | 5.00 | 4.50 | 3.00 | |
| 7 | 7.00 | 6.50 | 5.00 | |
| 10 | 10.00 | 9.50 | 7.50 | |
CONSTRUCTION OF MATERIAL
| Filter Housing : | Polypropylene 177.2240 |
| Filter Medium / Membrane : | Polyethersulfone 177.2240 |
| Polypropylene 177.2240 | |
| Poly-Tetra-Fluor_Ethylene 177.1550 | |
| Support Material: | Polypropylene 177.1520 |
| Sealing Method : | Thermal Bonding |
DIMENSION INFO
All Capsule Filters are Equipped with two Thread Luer-lok® for Venting, Draining or Sampling Functions. The following connections are available for both Capsule Filter Types:
| 3/8” Hose Barb |
| 1/4” MNPT |
| 3/8” |
| 3/8” FNPT MNPT |
USED IN INDUSTRIES
| Food & Beverage |
| Biotech |
| Chemical |
| Pharmaceutical & Health Care |
| Cosmetics |
